Application Structure#

_images/first.png

Modules and Queues#

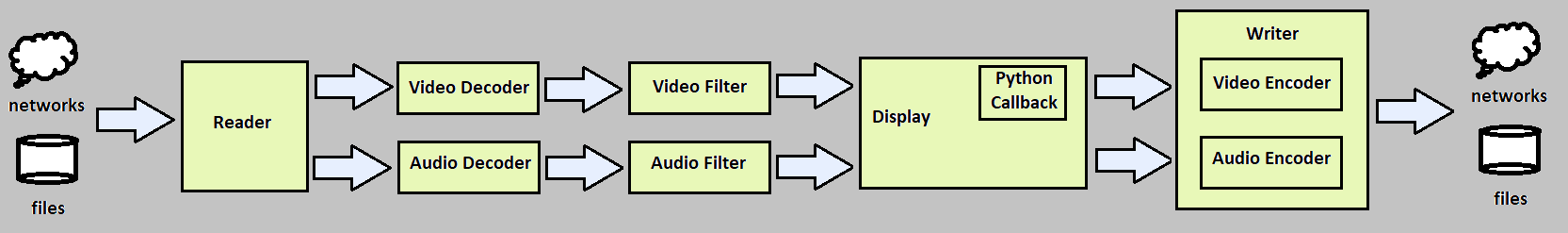

A python application written with avio will construct a media processing system consisting of modules that manipulate data and queues that transfer data between the modules. The modules operate independently in parallel threads and send data to each other along queues that control the flow of data with thread blocking.

The modules represent discrete stages of media processing and are implemented as python objects. Each module resides in it’s own thread, and is disconnected from the operation of other modules. This may sound like an obvious design trait, but is a departure from traditional programming using ffmpeg. Legacy applications often are interconnected at many levels between processing stages, leading to unexpected results when changes are made to the design of an application. The parallel processing design paradigm of avio enhances the stability of applications by virtue of the independence of the modules.

The queues control the flow of data between modules. Queues employ thread locks to block modules from processing data if downstream operations require more time to finish. The details of queue operation are abstracted away from the python developer, so there is no need to become familiar with the details of their operation. It is important to note, however, that the default size of the queue is one. This is done to keep the system responsive to user input for pause and seeking operations. The exception to this default occurs when media arrives to the application over a network stream. In this case, the structure and timing of incoming data may be such that the queue size must be increased for the Reader at the front end to prevent the loss of data by dropping frames. Queues further downstream in this scenario will maintain their default size. See the section on harvesting youtube data for a concrete example of this effect.

Process Object#

The process object is the main object of an application and acts as the container for the modules and queues. Module objects and their associated queues are contructed and added to a process object. Once all of the objects have been assembled into the process, the process is started using the run command. Once the process has started, it is not possible to change the structure of the modules or queues contained by it. The user may control the flow of data using pause and seek commands.

Display Object#

The display object has special properties that make it unique. It presents the media to the user, both video and audio. Although the python developer is not required to engage the details of operation, it can be helpful to understand, in general terms, the workings of the underlying mechanisms. For video data, the process resides in the main thread of the application. It also contains the thread of execution for the python video callback. The audio data is processed in another thread, which is a callback to the display. When audio is present in the stream, it will control the timing of the display thread. In the absence of audio data, timing is controlled by the video stream.

There are some differences in how the display should be configured for video and audio. The video display automatically detect the parameters from the stream and self configure. The audio display, however, requires that the developer set the parameters prior to starting the process. This is due to the callback nature of the audio display. The parameters that need to be set are

Display.sample_rate
Display.channels
Display.channel_layout
Display.sample_format
Display.frame_size

These parameters are readily available from either the Decode or Filter module that will be providing the input to the audio display. Note that in the underlying ffmpeg code that frame_size and nb_samples are used interchangeably.

The display has a built in user interface, named HUD (Heads Up Display). The HUD resides on the display screen, darkening the lower portion of the screen so the user is able to see the controls. The HUD by default will appear if the mouse is presented over the display and will disappear two seconds after the mouse leaves the display or becomes inactive. The HUD may be pinned to the display so that it is always shown, or it can be disabled so that it never appears.

The display will respond to a set of keyboard commands that control the operation. The Escape key will terminate the process and exit the application. The space bar will pause the display. The left and right arrow keys will fast forward or rewind the stream. The stream can be viewed in single step mode, with limits, by using the S key (forward) and the A key (reverse). The limits in this case is the amount of data kept in the current queue in the display, which holds the recently decoded frames.

Python Callback#

Video streams may be manipulated with a python class as they are processed by the application. The echo.py file included with the distribution shows how parameters and data are passed from the main process to the python callback. The primary data structure, which is the image itself, is passed to the python callback as a NumPy array.
